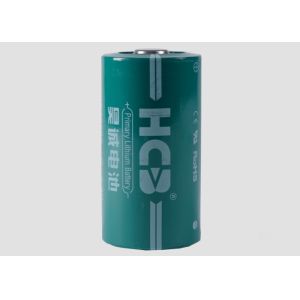

    4/5A 2200mAh Lithium Manganese Dioxide Battery For Water Metering Long Shelf Life

    Ask Lasest Price
    Brand Name : HCB
    Model Number : CR17450(4/5A)
    Certification : CE/UL/RoHS/UN
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : Two millions units per month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    4/5A 2200mAh Lithium Manganese Dioxide Battery For Water Metering Long Shelf Life


    Non Rechargeable Lithium Manganese Dioxide Batteries 4/5A 2200mAh for water metering


    Nominal Capacity2200mAh
    Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
    Nominal Voltage3.0 V
    Maximum Continuous Current1500mA
    Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
    Maximum Pulse Discharge Current3000mA
    Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
    Storage Condition

    Temperature ≤ 30℃

    Humidity ≤ 75%RH

    Operating Temperature-40℃ to +85℃
    Battery DimensionSee drawing on pag
    Max Weight26.0g
    Self-discharge Rate2%
    Max self-discharged rate at ambient temperature 23±2℃
    Shelf Life10 years
    Ambient temperature 23±2℃

    1. Battery Characteristic


    • High Voltage
      Nominal voltage up to 3.0 V
    • High Energy Density
      Specific energy density up to 260 Wh/kg
    • Wide Operating Temperature Range
      -40°C to +85°C
    • Long Shelf Life
      Self discharge rate is less than 2% per year at room temperature
      High capacity, stable performance, no passivation effect
      Glass-to-metal seal
      Bobbin and spiral structure is available for different applications

    2. Main Applications


    • Utility Metering
      Automatic meter reading(AMR), advanced metering infrastructure(AMI),electricity meters, gas meters, water meters, heat meters, etc.

    • Security
      Smoke detectors, security alarms, seismometers, digital door lock system, etc.


    3. Manufacturing Advantages


    • High energy density, double that of premium alkaline batteries
    • Low weight
    • High cell voltage
    • Flat discharge characteristic
    • Low self discharge
    • Very long shelf life
    • Very long operating life (15 to 20 years for lithium thionyl chloride)
    • Wide operating temperature range ( -60°C to +85°C for lithium sulfur dioxide)
    • Excellent durability
    • Small cell size

    4. Company Advantages

    • Quality management system of HCB is conformity with GB/T19001-2008/ISO9001:2008 standard;
    • HCB Environment Management System meets the standard GB/T24001-2004/ISO14001:2004;
    • We can provide you with the CE certificate if you need;
    • Rosh Standard is workable for HCB Battery;
    • UL Standard is workable for HCB Battery;

    5. Use Warning

    • Do not charge. When this battery is charged, gas is generated inside and raises internal pressure, resulting in fire, heat generation, leakage or bursting.
    • Do not dispose of in fire, disassemble or heat in any way. It will damage the insulation materials and the safety vent resulting in fire, heat generation, leakage or bursting.
    • Insert batteries properly. Keep polarities in the correct position aligning + and - correctly for ALL batteries to avoid leakage or bursting.

    6. Spiral Benefits
    High discharging current, high load voltage
    Typical Applications
    High power consumption equipment, like water meter,indicating lights, etc.
